Smart Sensor Bundle (S100 Door Sensor × 3 and S200 Motion Sensor × 1)

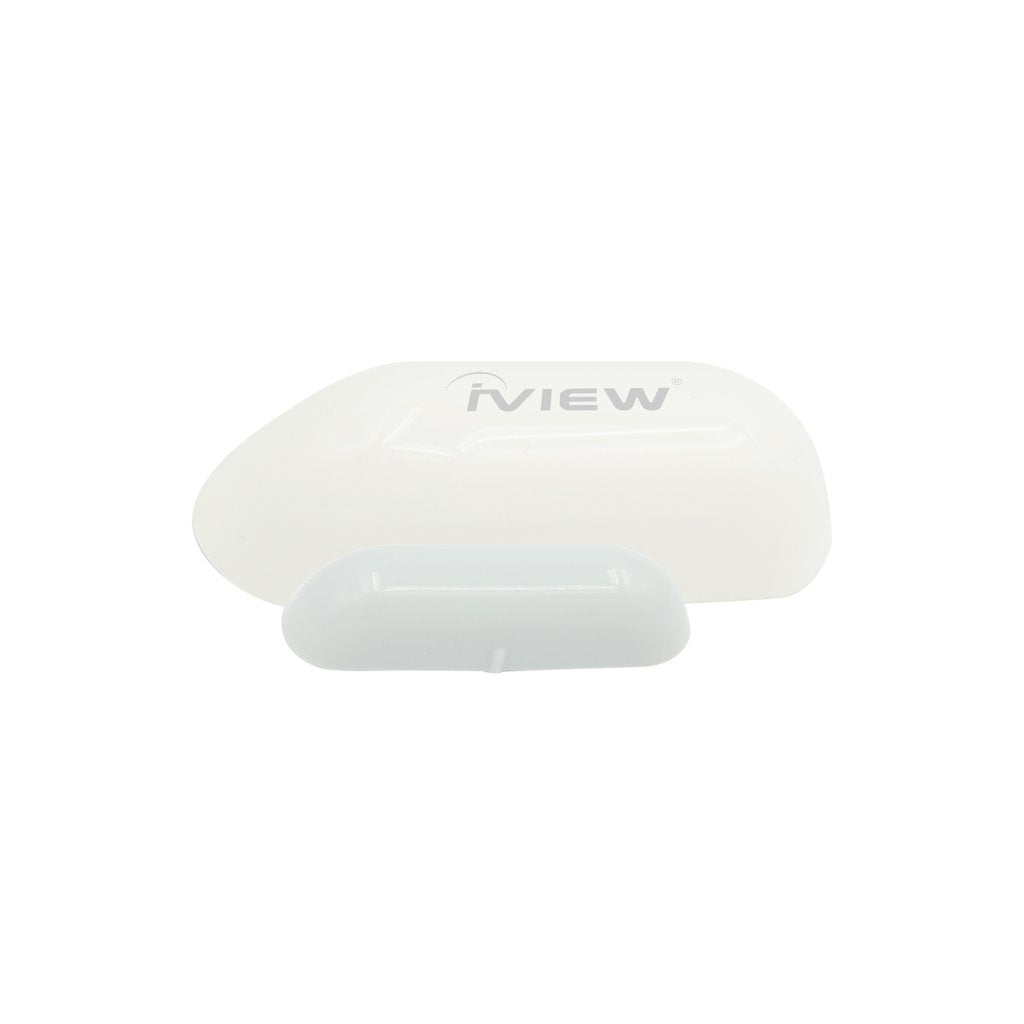

Door Sensor

Detects the Status of Door and Window (Open or Close)
Range: Up to 50m Outdoor; Up to 30m indoor
Radio Frequency: 868.4MHz EU; 908.4MHz US
Power: Cr2x1
Standby Current: 2uA
Battery Life: 2 years
Install on the Door or Windows
Easily Install with Screws or Sticker
Operation Temperature: 0 -40C
Size: Main Body: 2.8 × 0.83 × 0.87 inches
Deputy Body: 1.57 × 0.43 × 0.43 inches
This device only works with 2.4 GHz wireless connection.

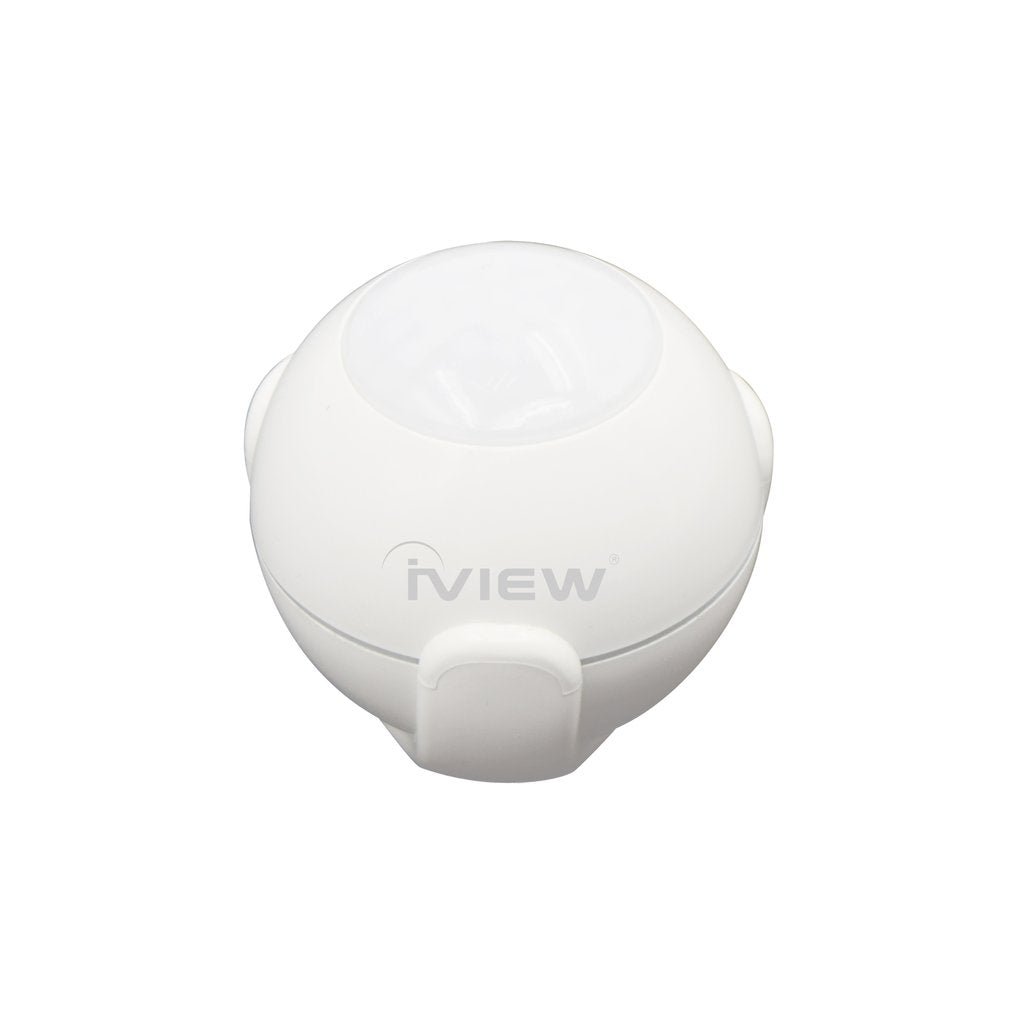

Motion Sensor

Battery: CR123Ax1
Standby Current: 20uA
Standby Time: 5 years
Use TIme: 1 year (25 times/day); 2 years (10 times/day)
Sensitivity Distance: 7M
Sensitive Angle: 110°
Wireless Type: 2.4 GHz
This device only works with 2.4 GHz wireless connection.
Protocol: IEEE 802.11 b/g/n
Wireless Range: 45m
Operating Temperature: 0 - 40°C (32 - 104°F)
Operating Humidity: 20 - 40%
Storage Temperature: 0 - 60°C (32 - 140°F)
Storage Humidity: 0 - 90%
Size: 1.97 × 1.89 × 1.89 inches

iView Smart Sensor Bundle Highlights

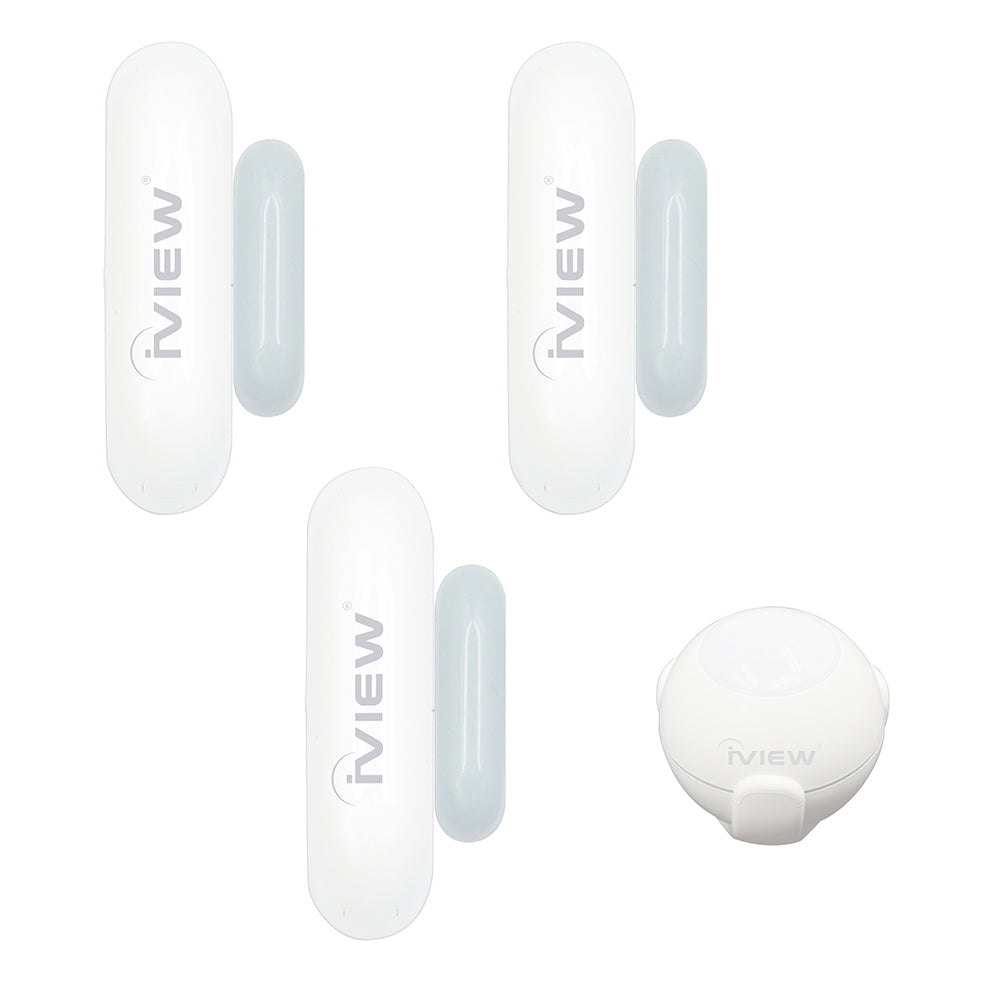

• Includes 3 S100 Door Sensors and 1 S200 Motion Sensor

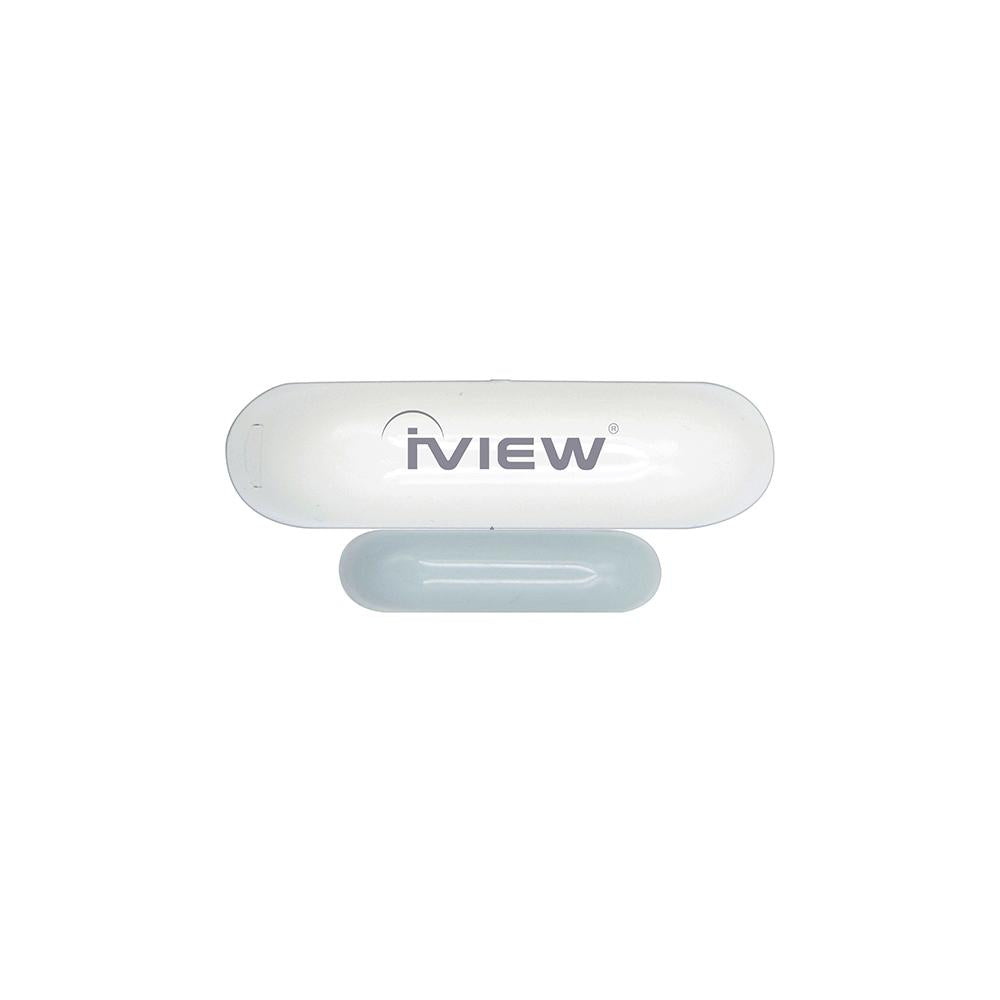

Door Sensor

• Magnetic strip that tracks the status of doors and windows (open or close)
• Easy Installation with sticker or screws
• Simple app with real-time alerts with security notifications
• Main Body: 2.8 × 0.83 × 0.87 inches
  Deputy Body: 1.57 × 0.43 × 0.43 inches
• 0.06 lbs

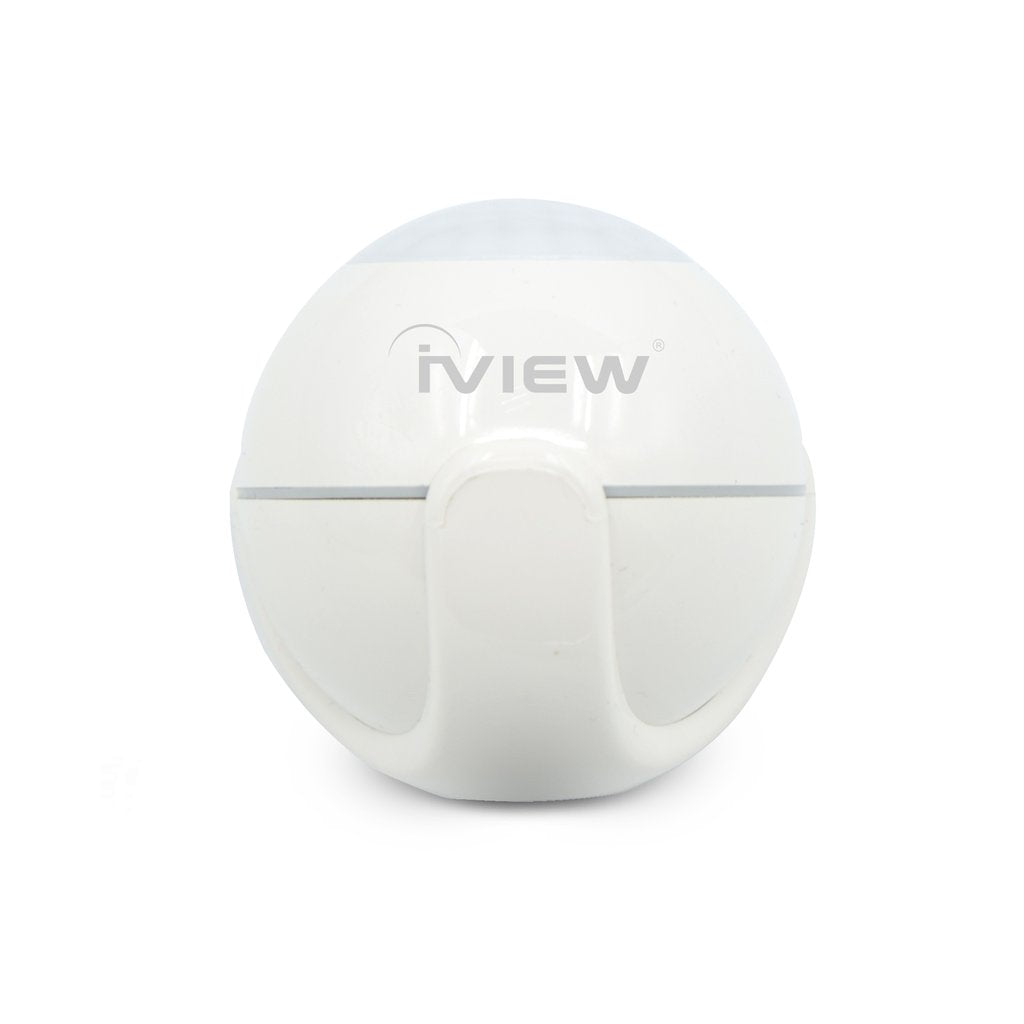

Motion Sensor

• Infrared technology to detect movement
• Can detect up to 7 meters / 22 feet with 110° rotation
• Easy Installation with screws
• Increased safety and security with real-time alerts for security notifications
• 1.97 × 1.89 × 1.89 inches
• 0.09 lbs

Live smart with iView's Smart Sensor Bundle. iView's Smart Sensor Bundle comes with the latest innovations in iView smart home technology. Designed to help you stay updated on activity occurring in your home, the iView Door and Window Sensor keeps track of the status of your doors and windows, meanwhile, the Smart Motion Sensor uses infrared technology to detect unknown movement and notify you of any irregularities.

Sleek and Compact Design

iView Smart Sensor's small, sleek and compact design make these smart sensor simple and convenient to install.

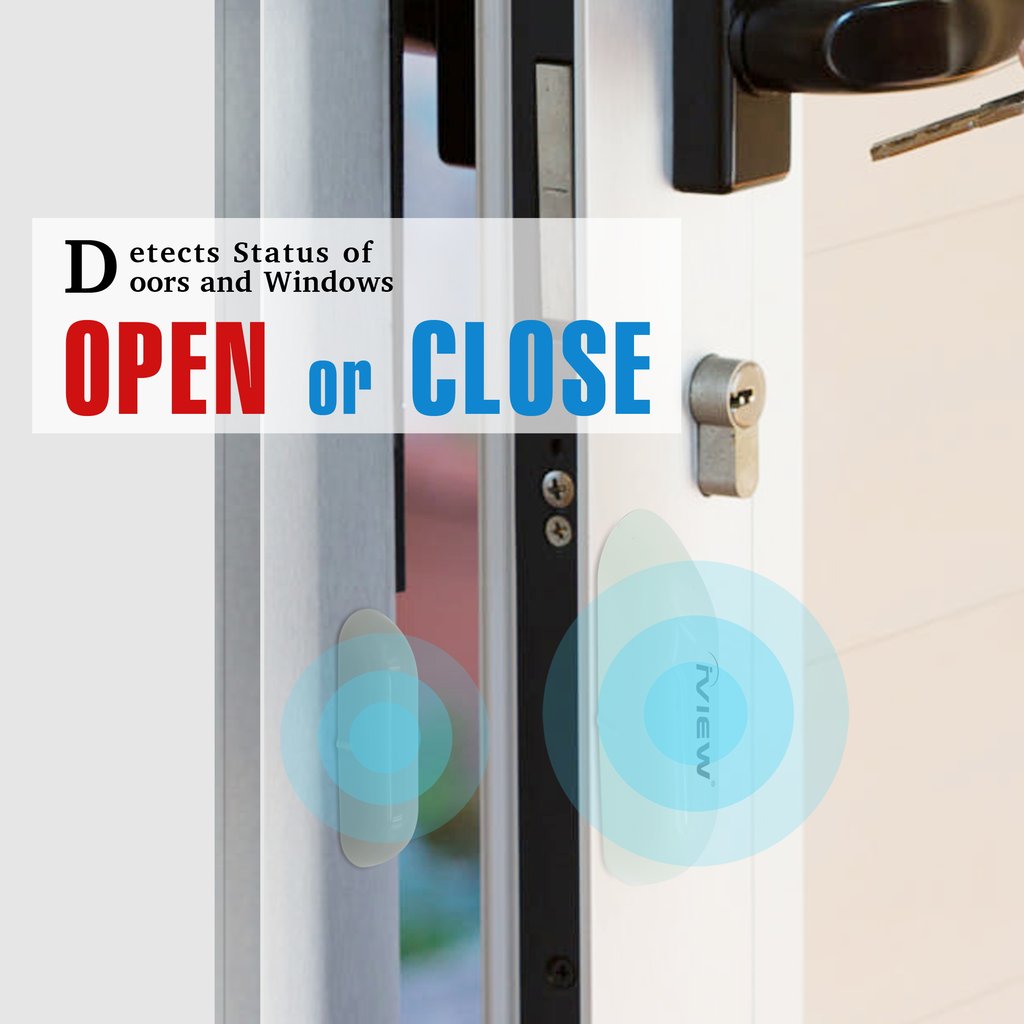

Detect Status of Doors and Windows

Detect the status of your doors and windows with iView's Door Sensor. A built-in magnet in both sensor pieces keeps track of your door and/or windows status. When the magnets are separated, the sensor is triggered and sends you a notification on your phone.

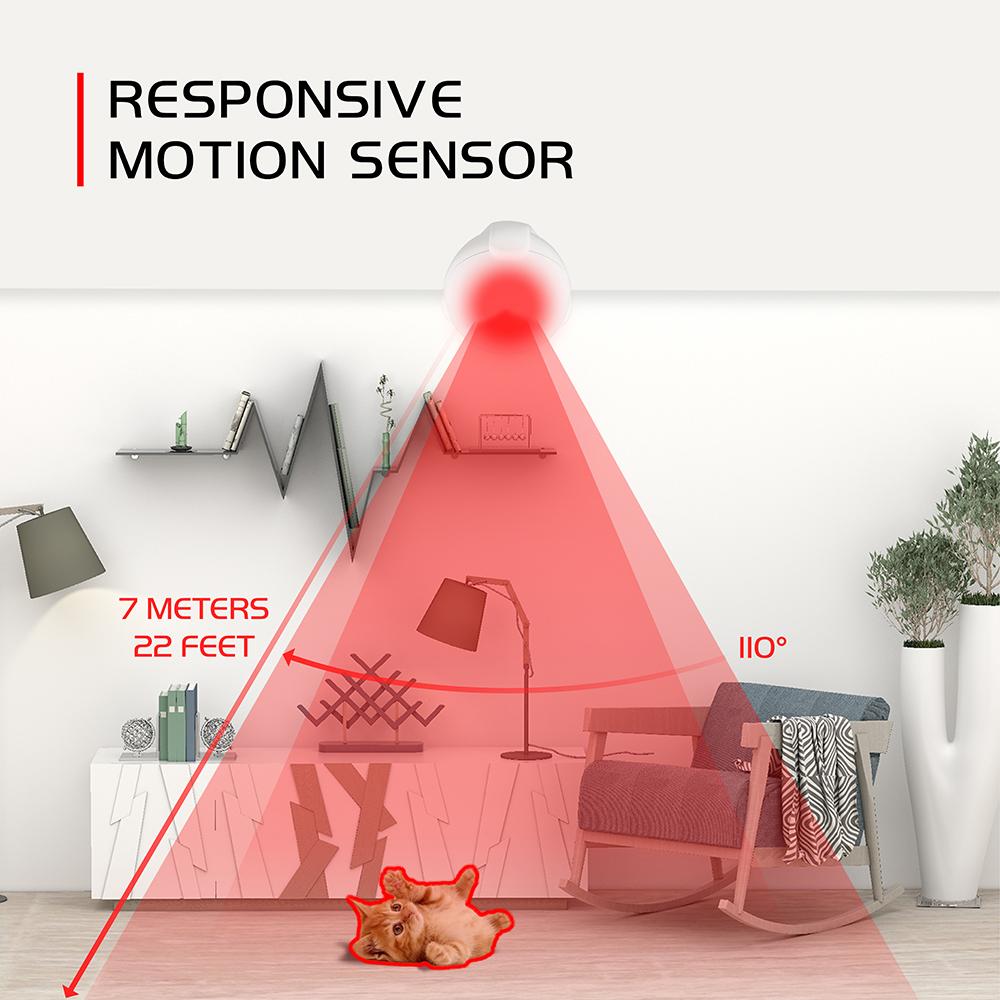

Responsive Motion Sensor

Concerned about the security of your house while you're away? Get alerts any time your iView Motion Sensor detects unknown movement. Using the latest in infrared technology to detect movement in whichever area you set it, the Smart Life and Tuya Smart app will notify you about everything from your pet entering areas they're not supposed to an unknown intruder entering your house.

The iView Motion Sensor can detect items up to 7 meters or 22.9 feet away. There's also no need to get frustrated with trying to install the sensor at the perfect angle. Once you have secured the base, the iView Motion Sensor can be rotated up to 110°.

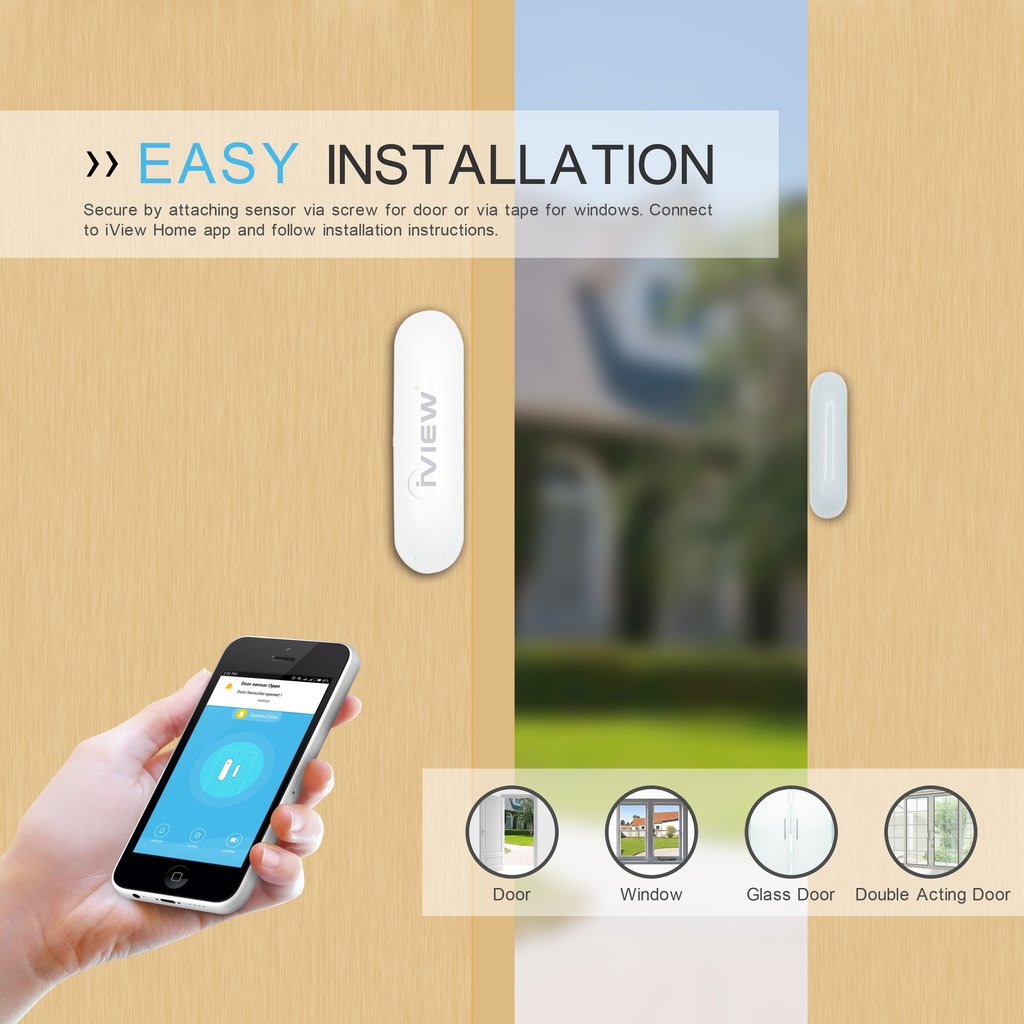

Easy Installation

Installing the iView Smart Door Sensor is easy. Simply secure to any door or window by attaching sensor via screws or tape. Alongside your smart door sensor, we include tape for the sensor and 6 binding barrels and screws, for easy installation with either method you choose.

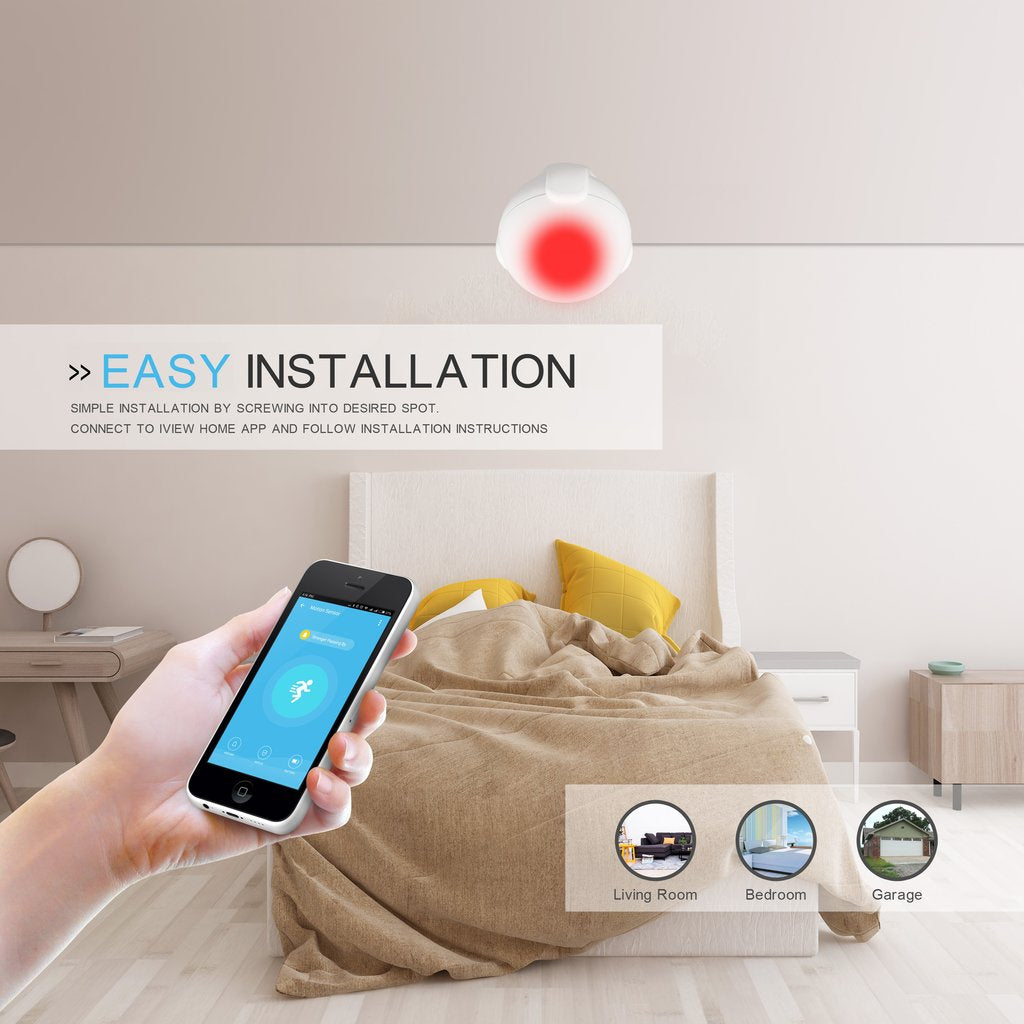

Install your iView Motion Sensor by screwing the device into desired spot. Connect your sensor to Smart Life and Tuya Smart app via WiFi. Once your device is paired, receive notifications every time something triggers your motion sensor.

Connect to Smart Life and Tuya Smart app to pair your device with your phone using WiFi. There's no hub required, making the process seamless and saving you the expense of purchasing another device. Once your device is paired with your phone, you'll always know the status of your doors and windows wherever you go!

Simple App with Real-time Alerts

Download the Smart Life and Tuya Smart app to connect with your smart sensor device. Own more than one smart home device from iView? Conveniently control them all in one app. Customize your settings, receive security notification and updates all in one place.
